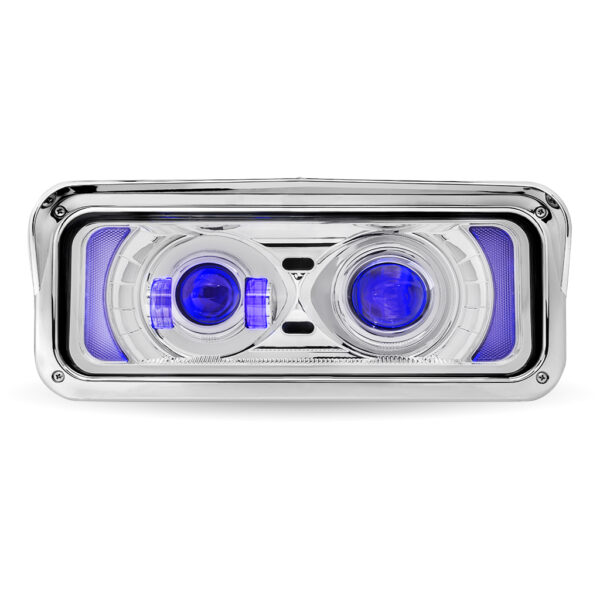

Universal LED Projector Headlight Assembly with Optional Backlit Auxiliary – Chrome (Passenger Side)
TLED-H125$0.00
- DOT Compliant
- Meets FMVSS-108 & CMVSS-108 Standards
- Projector Technology for a Wider Beam
- Integrated Traditional Visor & Optional Backlit Auxiliary
- Replaces OEM 4″ x 6″ Headlight Configurations
- Includes Housing Bucket for Kenworth, Freightliner & Western Star Models
- Sold Individually
- 3 Year Warranty
| Product Description | Universal LED Projector Headlight Assembly with Optional Backlit Auxiliary – Chrome (Passenger Side) |
|---|---|
| Style | Freightliner, Kenworth, Peterbilt, Western Star |
| Size | Double 4" x 6" |
| Sold | Individually |
| Compliance | DOT/SAE | FMVSS-108 | CMVSS-108 |
| Bulb Type | LED Projector |
| Function 1 | Combination High & Low Beam with DRL Accent |
| Function 2 | Turn Signal & Marker |
| Function 3 | Optional Backlit Auxiliary |
| LED Power | Low: 11 Watts | High: 28 Watts |
| Raw Lumens | Low: 3000 Lumens | High: 5000 Lumens |
| Effective Lumens | Low: 1200 Lumens | High: 2000 Lumens |
| Operating Voltage | 9-30 Volts (DRL Compatible) |
| Current Draw @ 12 Volts | Low: 0.87 Amps | High: 2.5 Amps |
| DRL Amperage (Watts/Amps) | 0.4 Amps |
| Turn / Marker Amperage (Watts/Amps) | 0.4 Amps |
| Interior Color | Chrome |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Housing Material | ABS Plastic |
| Product Restriction | Where use of Backlit Auxiliary is Authorized/Legal under State Law |
| Waterproof Rating | IP67 Rating |
| What's Included | Housing Bucket & Hardware Included |
| Package Dimensions | 18.8"L x 9.5"W x 9.8"H |
| Inner Box QTY | 1 PC |
| Warranty | 3 Year Warranty |
Description
INSTALLATION:
Please refer to Installation PDF/Video
WATCH:
Universal LED Headlight Assembly Guided Installation – Peterbilt
Universal LED Headlight Assembly Guided Installation – Kenworth/Freightliner/Western Star
VIEW/DOWNLOAD:
Universal LED Backlit Headlight Assemblies Technical Data
Universal LED Headlight Assembly Installation Guide (Peterbilt)
Universal LED Headlight Assembly Installation Guide (Kenworth, Freightliner, Western Star)
Headlight Troubleshooting Guide
TRUX RESOURCES:
| Make | Model | Year |
|---|---|---|
| Freightliner | Classic | 1990 - 2007 |
| Kenworth | T600 | 1985 - 2007 |
| Kenworth | T800 | 1987 - Current Year |
| Kenworth | W900 | 1984 - Current Year |
| Peterbilt | 357 | 1986 - 2007 |
| Peterbilt | 365 | 2007 - 2009 |
| Peterbilt | 378 | 1986 - 2007 |
| Peterbilt | 379 | 1987 - 2007 |
| Western Star | 4800 Series | 2002 - Current Year |
| Western Star | 4900 Series | 2002 - Current Year |
| Western Star | 6900 Series | 2002 - Current Year |
