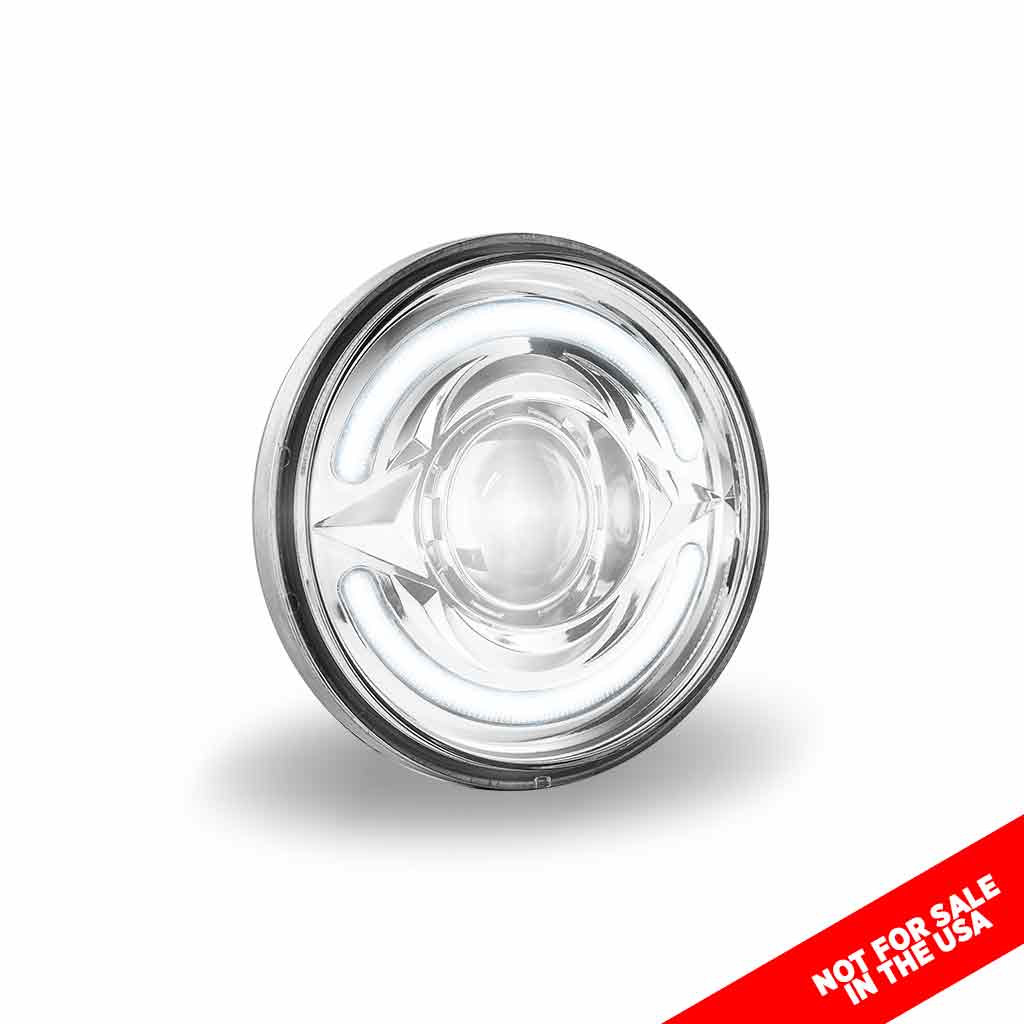

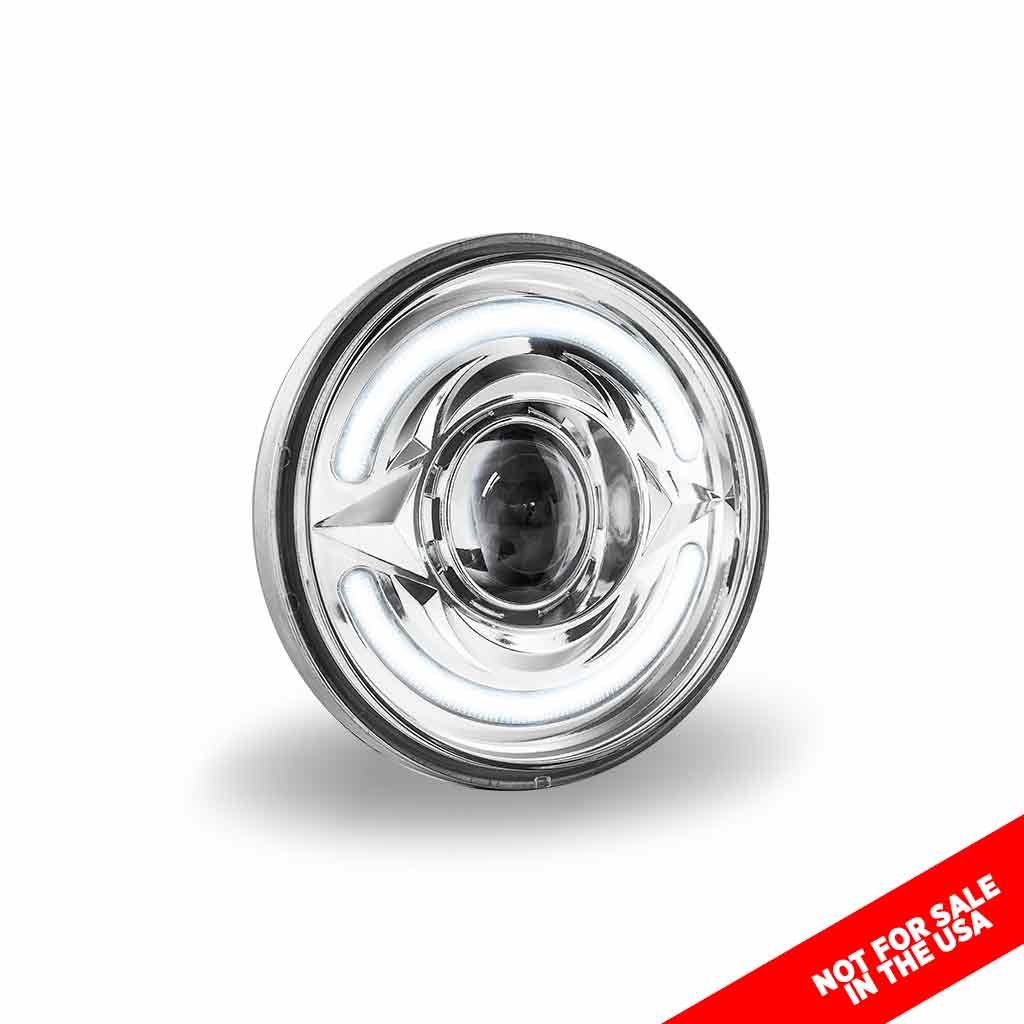

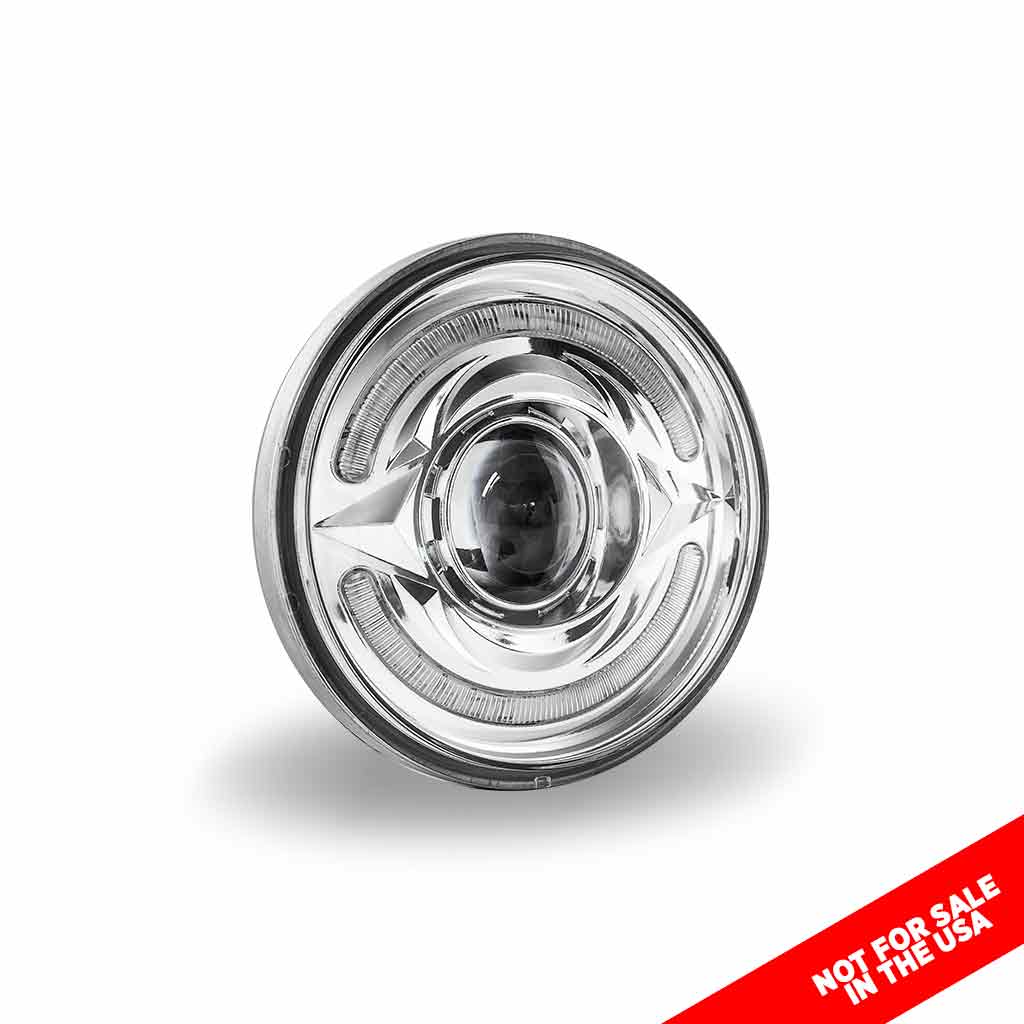

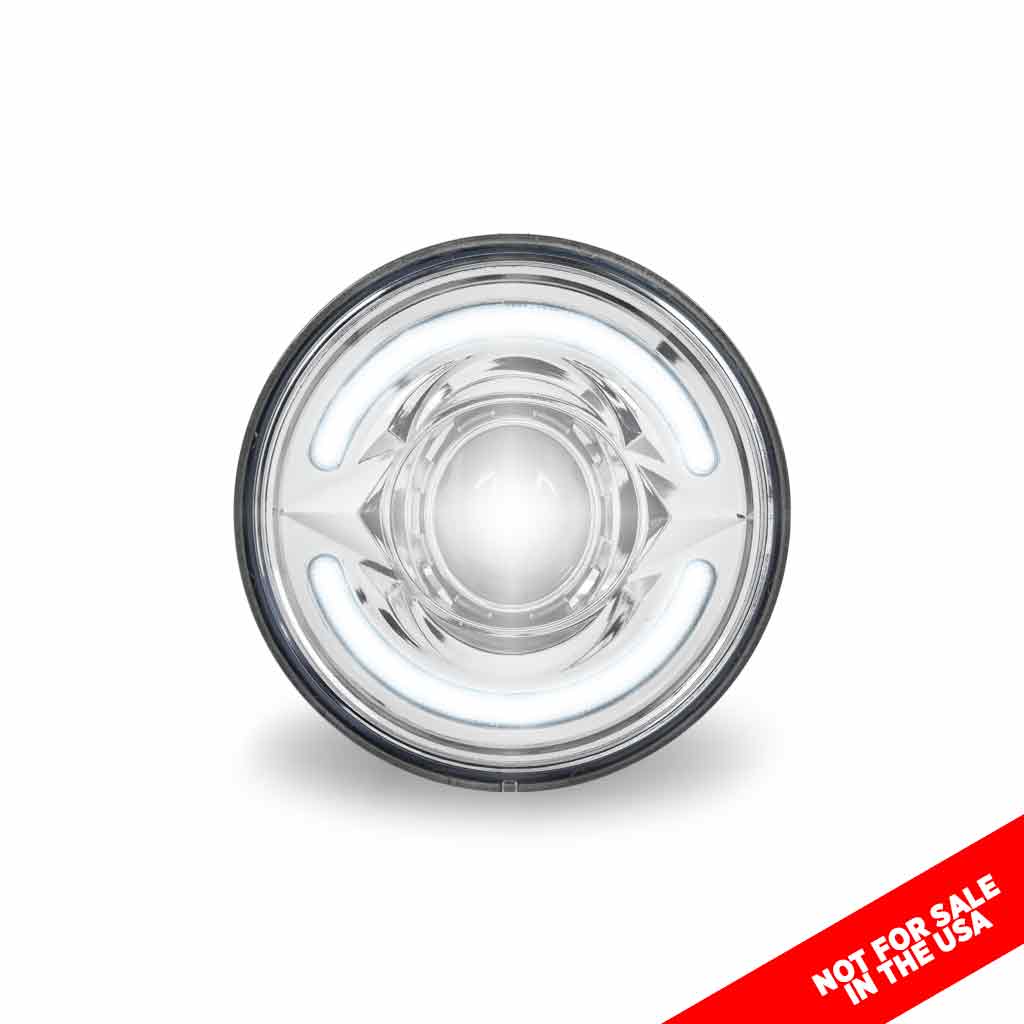

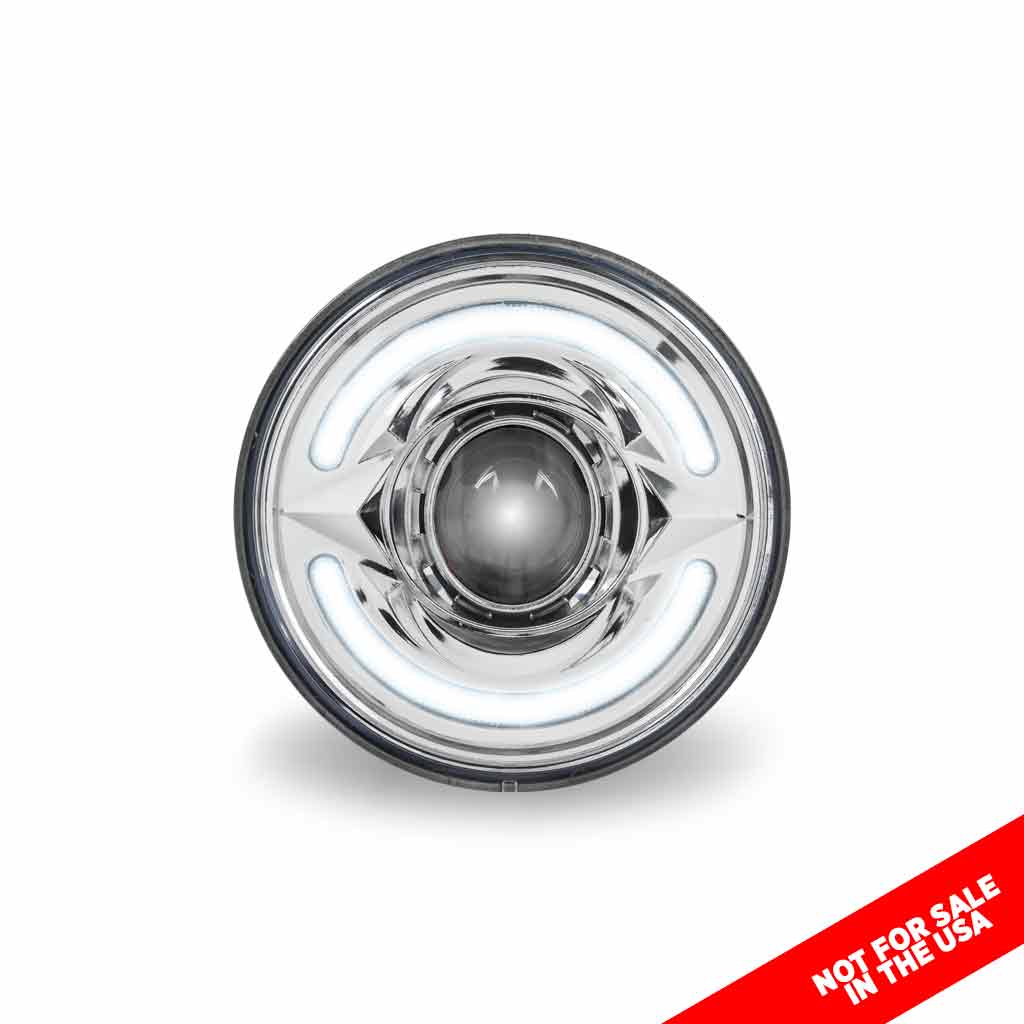

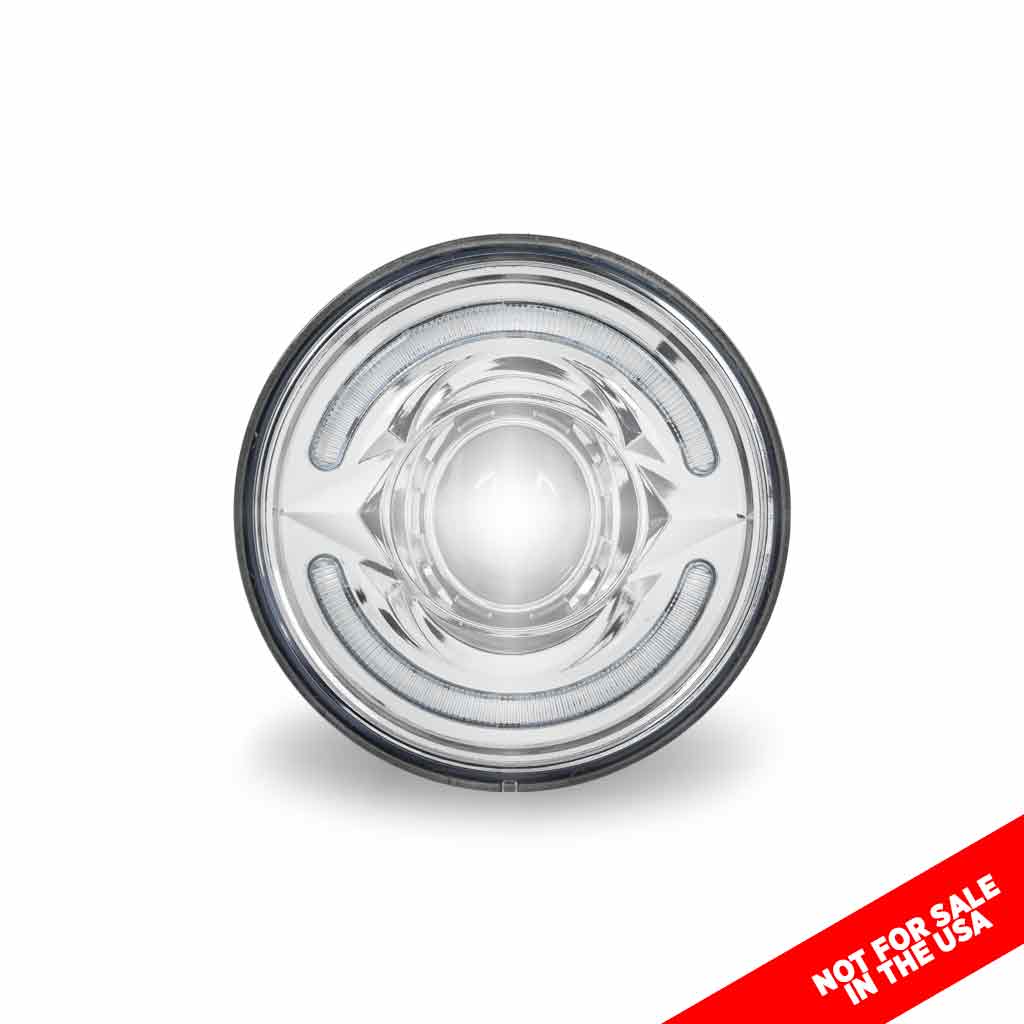

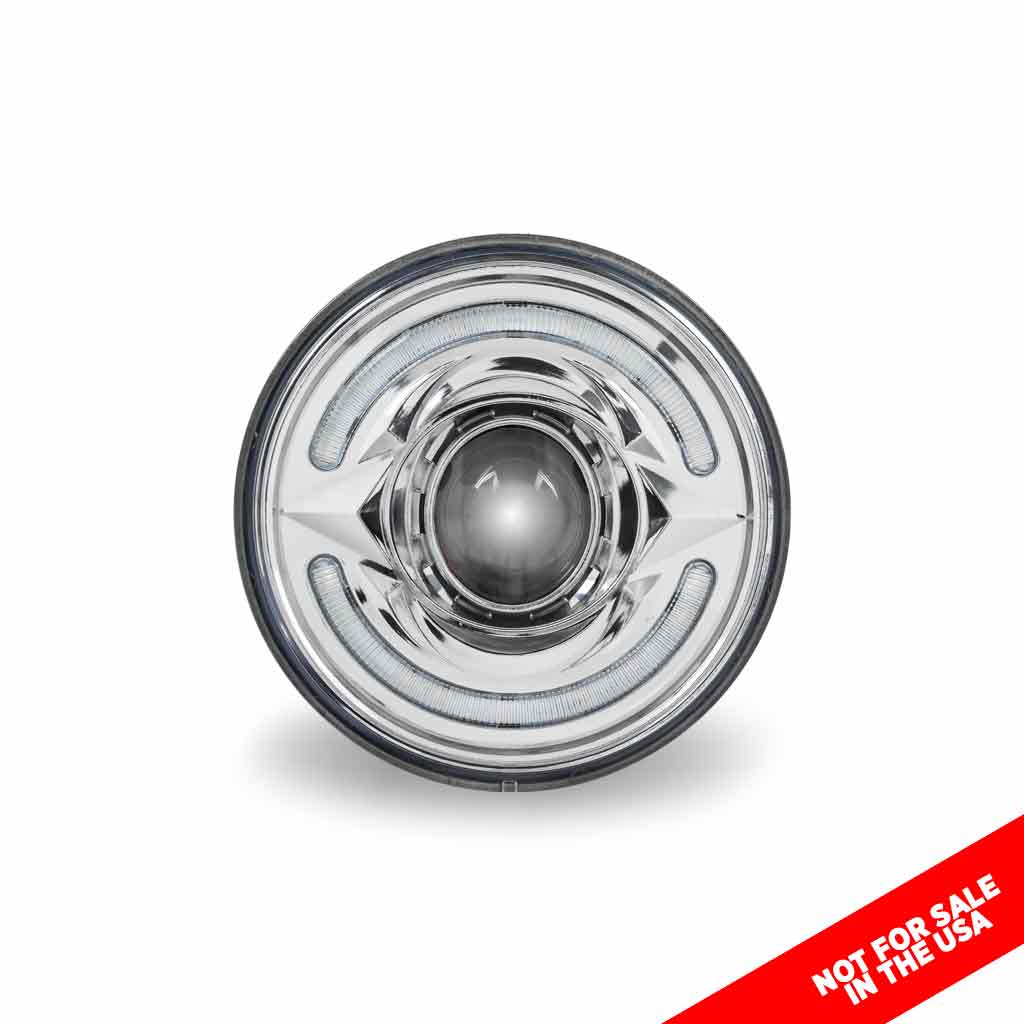

5.75″ LED Projector Headlight – Low Beam | 1500 Lumens
TLED-H63$0.00
- For Off Road Use Only
- Projector Technology for a Wider Beam
- Eye-Catching LED Accents
- Bright 1500 Lumens
- Low Beam

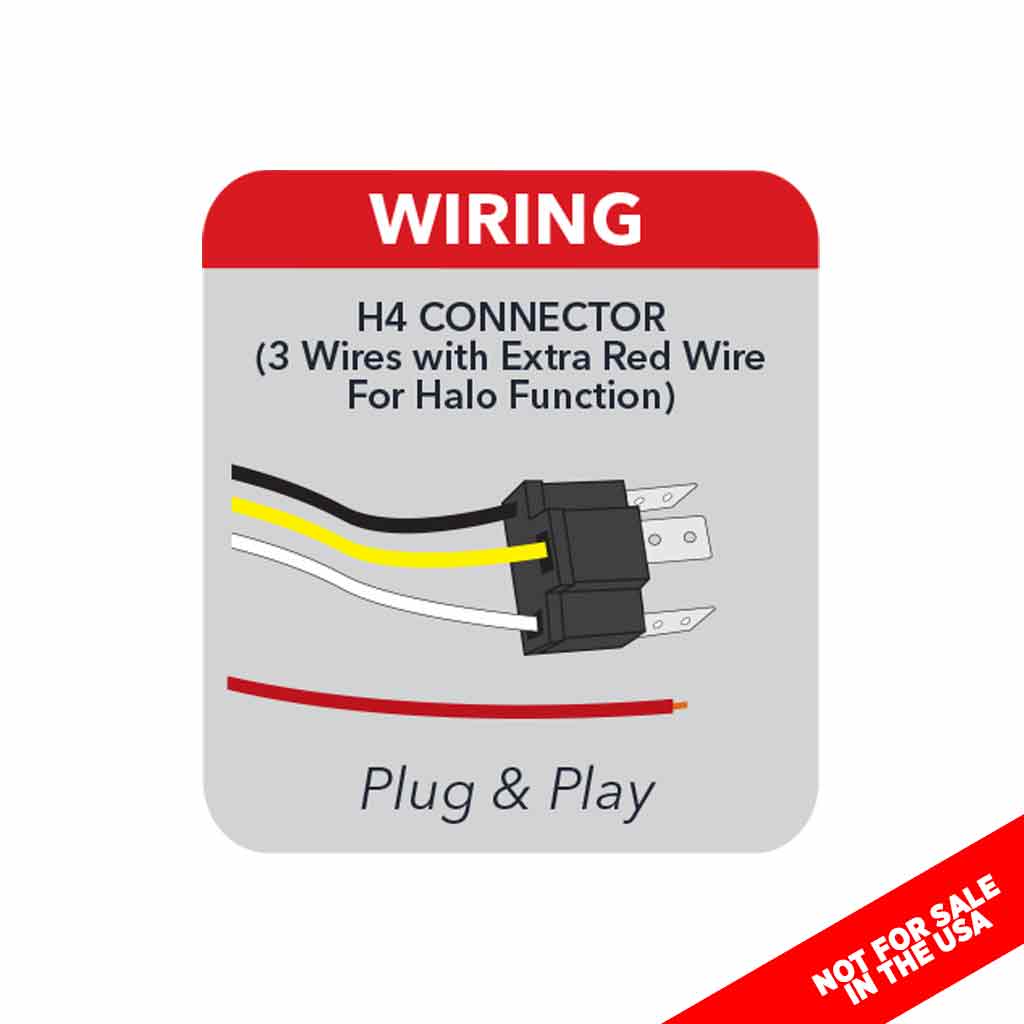

- Standard H4 Connector for Easy Installation
- Retrofit: H5006
- Sold Individually
- 7 Year Warranty
| Product Description | 5.75" LED Projector Chrome Headlight with Auxiliary LED Accents – Low Beam |
|---|---|
| Size | 5.75" |
| Sold | Individually |
| Compliance | No |
| Bulb Type | LED Projector |
| Function 1 | Low Beam |
| Function 2 | Auxiliary Accents |
| LED Power | 22 Watts |
| Raw Lumens | 1500 Lumens |
| Effective Lumens | 1200 Lumens |
| Operating Voltage | 10-30 Volts |
| Current Draw @ 12 Volts | 1.85 Amps |
| Diodes | 1 Diode |
| Interior Color | Chrome |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Color Temperature | 6000K |
| Housing Material | Aluminum Die Cast |
| Retrofit | H5006 |
| Product Restriction | Not Available in the United States |
| Waterproof Rating | IP67 Rating |

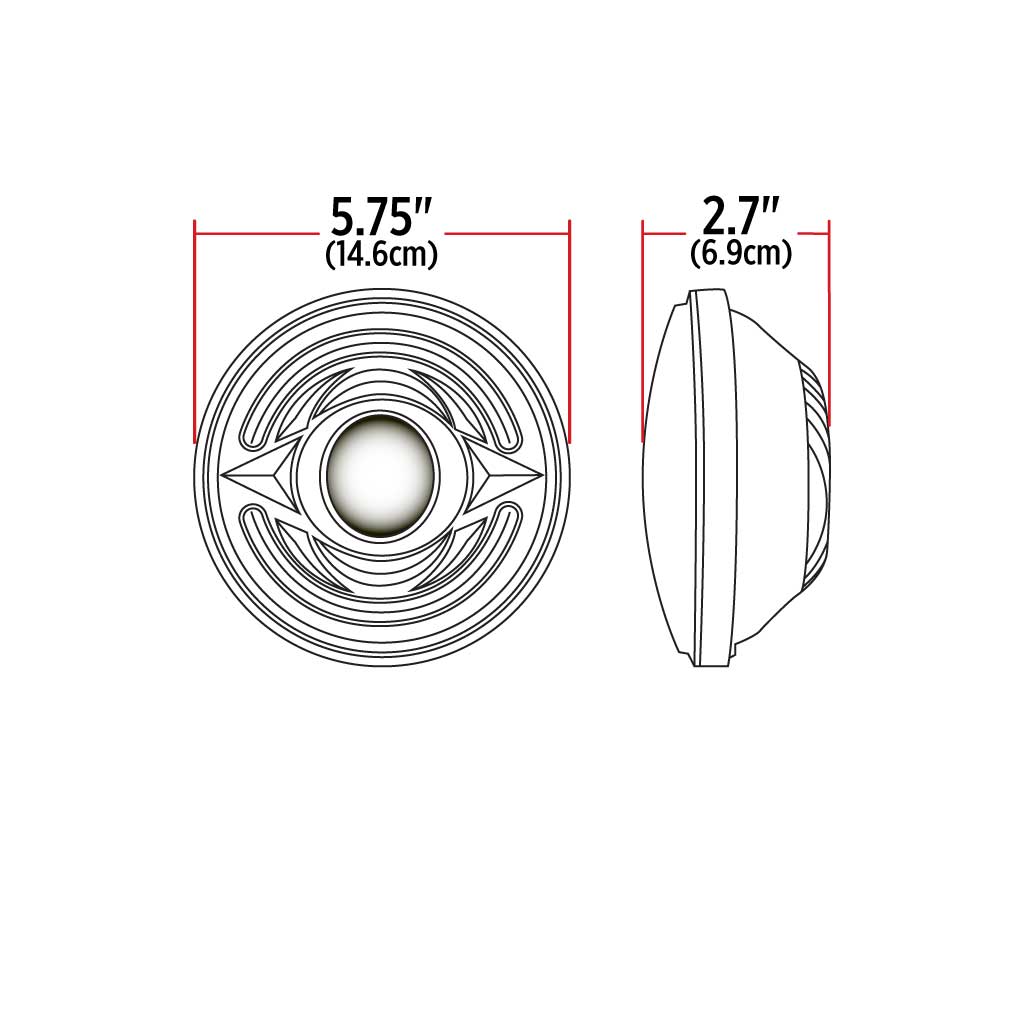

| Product Dimensions | 5.75"L x 2.7"W x 5.75"H |
| Package Dimensions | 6"L x 3.25"W x 6"H |
| Inner Box QTY | 1 PC |
| Warranty | 3 Year Warranty |
Description
INSTALLATION:
Please refer to Installation PDF/Video
VIEW/DOWNLOAD:
TLED-H56/H63 Technical Data Headlight Troubleshooting Guide
